Site Mapping Services

• Survey-Level Accuracy
  We work from control, LiDAR, and high-resolution imagery to produce linework and planimetrics that meet survey standards. Our deliverables are built so your surveyors, engineers, and GIS teams can plug them directly into their workflows.

• 24-Hour Delivery on Most Sites
  For typical commercial and light industrial sites, we turn around mapping in as little as 24 hours once data is received. Urgent design deadlines and fast-moving projects are exactly what we’re built for.

• AI-Enabled, Human QA/QC
  We use advanced GeoAI to extract features like pavements, buildings, curbs, striping, utilities, and vegetation—then every deliverable is reviewed by experienced mapping and survey professionals. You get the speed of automation with the confidence of human quality control.

• No-Risk Satisfaction Guarantee
  If you’re not satisfied with the final deliverable, you don’t pay. We’ll either make it right or you walk away at no cost. It’s that simple.

Typical Site Mapping packages can include:

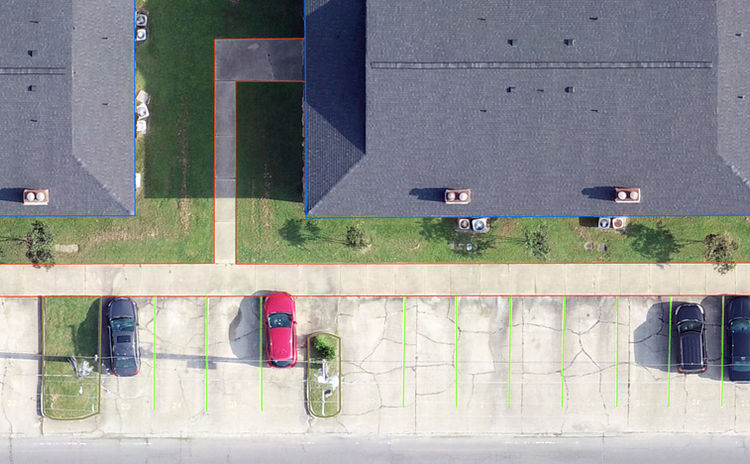

• Planimetric Mapping

  • Building footprints and rooflines

  • Parking lots, striping, curbs, and sidewalks

  • Fences, walls, and hardscape

  • Driveways, roadways, and access paths

• ALTA/Survey Support

  • Initial linework for ALTA surveys

  • Easement and boundary feature mapping (from provided records)

  • Utility structures (manholes, inlets, valves, meters visible in imagery)

• Topographic & Surface Features

  • Spot elevations and breaklines (from LiDAR/DTM)

  • Drainage features and ditches

  • Vegetation limits, tree canopies, and landscape areas

• CAD & GIS-Ready Files

  • AutoCAD (DWG/DXF) with layers and symbology

  • Esri Geodatabase / Feature Classes and hosted layers

  • Project-specific templates to match your standards

1. Kickoff & Scope
   Share your site location, required accuracy, and desired deliverables (ALTA linework, planimetrics, topo, etc.). We confirm scope, pricing, and 24-hour feasibility.

2. Data Intake
   You provide aerial imagery, LiDAR, or existing survey control—or we help you arrange new data collection through our Aerial Data Collection partners.

3. AI-Driven Extraction
   Our GeoAI models extract key features from imagery and elevation data, dramatically reducing manual drafting time.

4. Human QA/QC
   Experienced drafters and survey professionals review and refine the AI output, ensuring linework, layers, and symbology meet your standards.

5. Delivery in 24 Hours
   For standard sites, we deliver your CAD/GIS files within 24 hours of confirmed data receipt—along with a brief summary of methods, assumptions, and accuracy.

6. Review & Adjustments
   Need a tweak? We make adjustments quickly. If you’re not satisfied with the final product, you don’t pay.

• ALTA/NSPS land title surveys

• Pre-design and conceptual planning

• Subdivision and site development projects

• Utility and infrastructure mapping

• As-built documentation and updates

• Due diligence and feasibility studies

• Land surveyors and civil engineers

• Land development firms and planners

• Utilities and public works agencies

• Environmental and infrastructure consultants

• Architects and design-build teams

​

Ready to Map Your Site?

If you have imagery, LiDAR, or a survey project that needs fast, accurate mapping, we’d love to help.

​

Get in touch to:

• Request a sample deliverable

• Upload a test site for a 24-hour turnaround

• Get a fixed price quote for your next project

​

No cost if you’re not satisfied.

Send your site details and we’ll show you how fast, accurate, and easy Site Mapping can be with Windward Technology Group.
